Welded wire mesh

we are welded wire mesh supplier from china .

According to different ways of fabrication ,mainly wire mesh can be divided into two types, welded wire mesh and woven wire mesh , woven wire mesh apertures and wires can be various ,thousands of specs ,Compared to woven type , welded type has it's own advantages, It has bigger apertures (openings) ,The wires welded at each intersection giving the mesh strength and the capability of maintaining its integrity under stress, in other words , it is firm, steady ! it is widely used in different construction projects , since it is cheaper and quicker fabricated , also easy cut and shape forming ,welded mesh in stainless steel is free of corrosion ,can survival very long time in acid ,hot ,wet situation, looks shining after many years use.

In previously , our welding machines made to Inch system , that means the mesh(wire center distance) can be only 1/4" ,3/8" ,1/2" ,5/8",3/4",7/8", 1inch ,2inch , However ,As a result of CNC technology widely used in wire mesh industry , computer controls the feeding distance ,especially for wire panel / sheets any pitch is available , such like 20mm ,22mm, 40mm .....

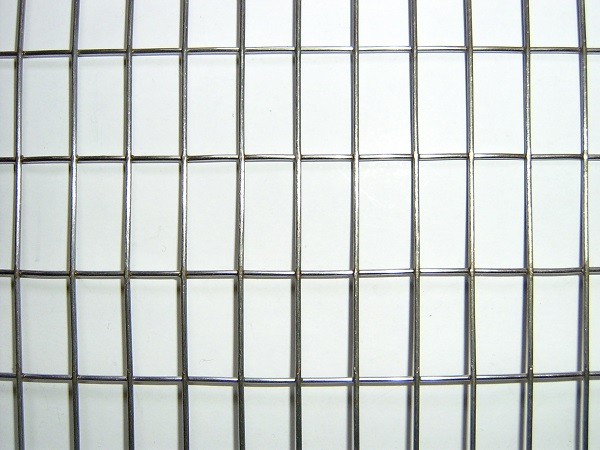

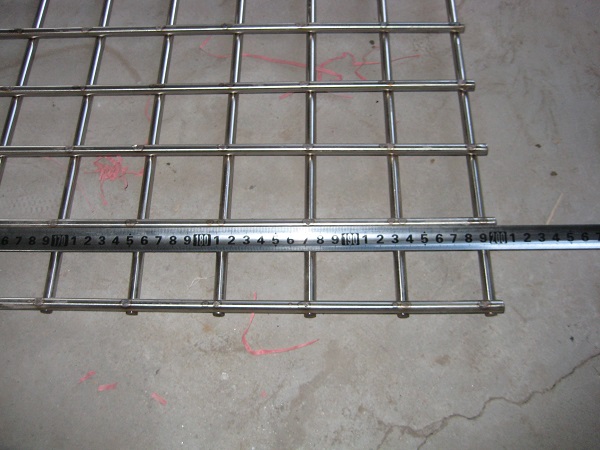

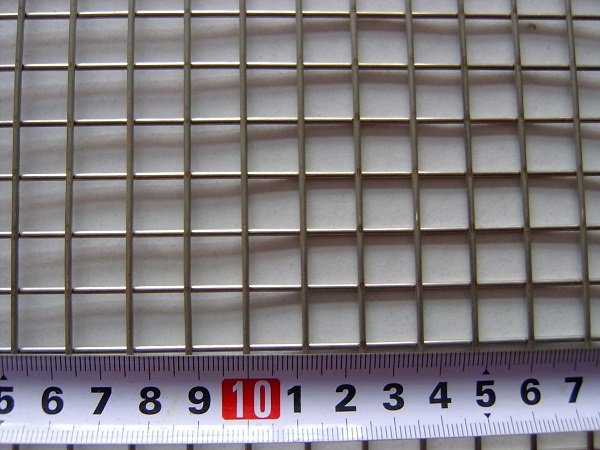

Welded Mesh Panel

• Material available in Grade 304 and Grade 316, standard of stainless steel .
• Mesh apertures from mini 25mm to 200mm.
• Stock size mainly in 1220mm wide , 2440mm length , some in 3050mm .
• wire diameter from 2.0mm to 8.0mm .


Stock Panels list
Item No.	Mesh	Wire	Width	Length	Grade
	mm	mm	mm	mm	AISI
SWP252525	25.4 x 25.4	2.5	1220	2440 / 3050	304 / 316
SWP252530	25.4 x 25.4	3.0	1220	2440 / 3050	304 / 316
SWP255030	25.4 x 50.8	3.0	1220	2440 / 3050	304 / 316
SWP404030	40 x 40	3.0	1200	2400	304 / 316
SWP505030	50.8 x 50.8	3.0	1220	2440 / 3050	304 / 316
SWP505040	50.8 x 50.8	4.0	1220	2440 / 3050	304 / 316
SWP505050	50.8 x 50.8	5.0	1220	2440 / 3050	304 / 316
SWP507540	50.8 x 76.2	4.0	1220	2440 / 3050	304 / 316
SWP10010050	100 x 100	5.0	1200	2400	304 / 316
SWP10010060	100 x 100	6.0	1200	2400	304 / 316
SWP10010080	100 x 100	8.0	1200	2400	304 / 316
SWP15015080	150 x 150	8.0	1200	2400	304 / 316
SWP20020080	200 x 200	8.0	1200	2400	304 / 316

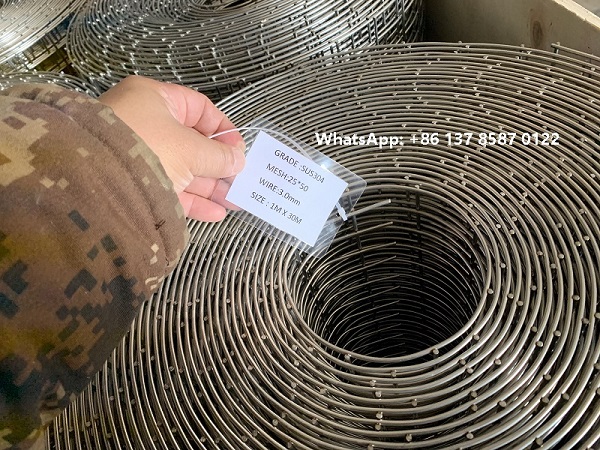

Welded Wire Mesh Roll

• Material available in Grade 304 and Grade 316, standard of stainless steel.
• Mesh apertures from mini 6.35mm to 50.8mm.
• Stock size mainly in 1220mm wide , some available in 1524mm.
• wire diameter from 0.6mm to 2.0mm .

Stock Rolls list
Item No.	Mesh	Wire	Width	Length	Grade
	mm	mm	mm	mm	AISI
SWR060606	6.35 x 6.35	0.6	1220	30.5	304 / 316
SWR060608	6.35 x 6.35	0.8	1220	30.5	304 / 316
SWR090908	9.5 x 9.5	0.8	1220	30.5	304 / 316
SWR090910	9.5 x 9.5	1.0	1200	30.5	304 / 316
SWR121212	12.7 x 12.7	1.2	1220	30.5	304 / 316
SWR121216	12.7 x 12.7	1.6	1220	30.5	304 / 316
SWR122516	12.7 x 25.4	1.6	1220	30.5	304 / 316
SWR191916	19.05x 19.05	1.6	1220	30.5	304 / 316
SWR191920	19.05x 19.05	2.0	1220	30.5	304 / 316
SWR252516	25.4 x 25.4	1.6	1200	30.5	304 / 316
SWR252520	25.4 x 25.4	2.0	1200	30.5	304 / 316
SWR383820	38.1 x 38.1	2.0	1200	30.5	304 / 316
SWR505020	50.4 x 50.4	2.0	1200	30.5	304 / 316

How can i place an order ? Pls forward us your requirement as following points .
