Quarry screen ,vibrating screen,mining screen

We offers a wide range of heavy-duty wire mesh, woven wire screens of high tensile steel or stainless steel for mining ,quarry industries.

The Materials:

Mining, quarry screens are available in rolls or standard panels or cut to size with or without hook strips. Vibrating screens for wet and dry applications, different wires (geometrical models wire, perforated metal sheets, bars, circle, square or rectangular) are available in all sizes. Or you describe your requirement and make product exactly as your want .

Material available:45#,50#,55#,60#,70#, 65Mn , stainless steel.
Apertures : from 1mm to 100mm
Finished : hooks , flat or rolled.

The Applications:

Wire screens are best suited for the screening of abrasive materials due to their high wear rate. High-tensile screens serve many mining and quarry applications, including the screening of all types of minerals, soil, sand and stone crushing. The screening media is ready for installation on machines of all types and ideal for many industries: mineral processing, cement, chemical, gravel, sand, coal, iron ore and many more.

wire mesh wire mesh wire mesh
wire mesh slot screen wire mesh

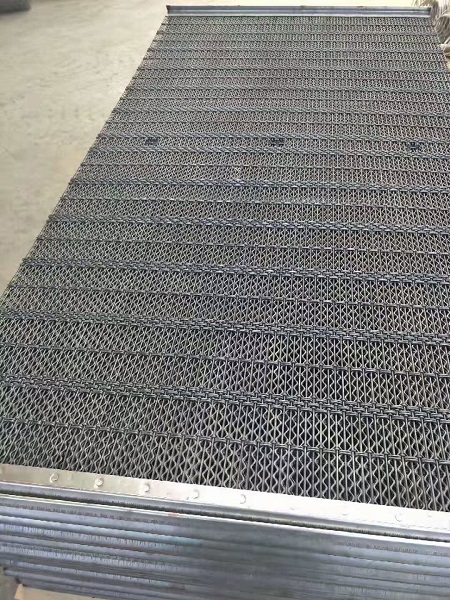

wire mesh wire mesh self clearn mining screen

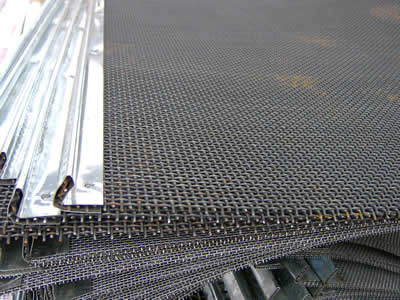

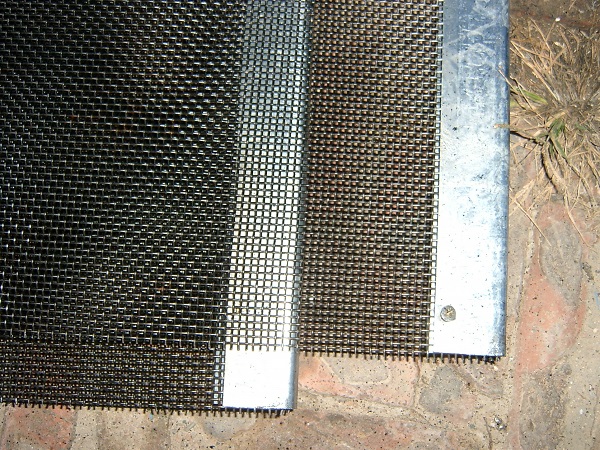

hooked screen 180 degree hook reinforcing edge quarry screen
45° hook 180° hook reinforcing edge
plain crimped screen intermediate screen slotted crimped screen
plain crimped screen intermediate crimped screen slotted crimped screen

Typical specs

Opening (Aperture)

Wire Diameter

Open Area

Approx. Weight

mm

inch

mm

percentage kg/M2
19.05  3/4 6.0 58% 18.3
22.23  7/8 6.0 62% 16.2
25.4 1    6.0 65% 14.6
27 1-1/16 6.0 67% 13.9
28.58 1-1/8 6.0 68% 13.2
31.75 1-1/4 6.0 71% 12.1
28.58 1-1/8 7.0 65% 17.5
31.75 1-1/4 7.0 67% 16.1
38.1 1-1/2 7.0 71% 13.8
25.4 1    7.0 61% 19.2
28.58 1-1/8 8.0 61% 22.2
31.75 1-1/4 8.0 64% 20.4
38.1 1-1/2 8.0 68% 17.6
41.28 1-5/8 8.0 70% 16.5
44.45 1-3/4 8.0 72% 15.5
50.8 2    8.0 75% 13.8
25.4 1    8.0 58% 24.3
31.75 1-1/4 9.0 61% 25.2
38.1 1-1/2 9.0 65% 21.8
41.28 1-5/8 9.0 67% 20.5
44.45 1-3/4 9.0 69% 19.2
50.8 2    9.0 72% 17.2
57.15 2-1/4 9.0 75% 15.6
63.5 2-1/2 9.0 77% 14.2
50.8 2    9.0 72% 17.2
57.15 2-1/4 10 72% 18.9
63.5 2-1/2 10 75% 17.3
76.2 3    10 78% 14.7
88.9 3-1/2 10 81% 12.8
101.6 4    10 83% 11.4
