Bar grating

Bar Grating produced by bearing bars welded together at different distance to perpendicular cross bars to form a load-bearing panel. Panels are manufactured by welding, locked by swaging, or press-locked processes. A typical panel configuration has bearing bars that are spaced 30mm pitch with perpendicular cross bars spaced 100mm pitch . Other spacings are available to meet your loading and open area requirements.

It is available in a wide selection of panel sizes; bar sizes and spacings; bar shapes; and material types. The most popular style is Welded Bar Grating,our normal stock size is 1meter x 6meter ,different specs of bar grating can meet almost any load bearing or weight requirement and is the most durable grating for rugged applications. which is a good choice for strength, safety, and long-term cost.

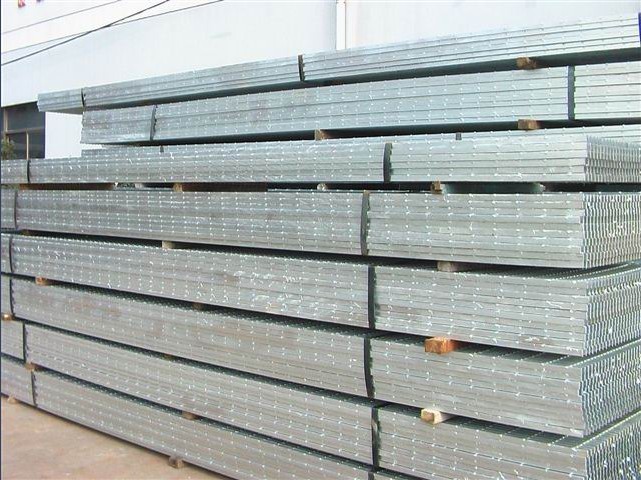

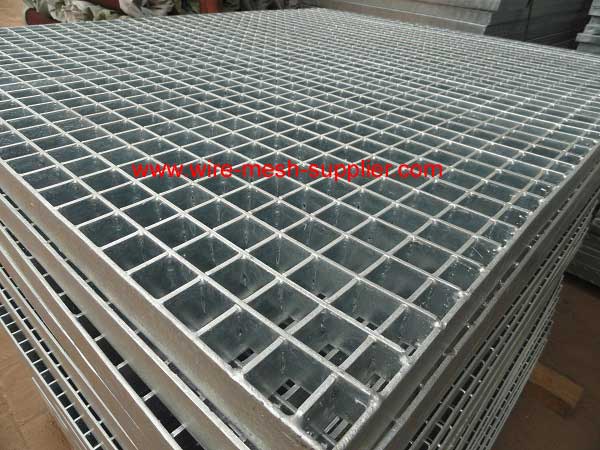

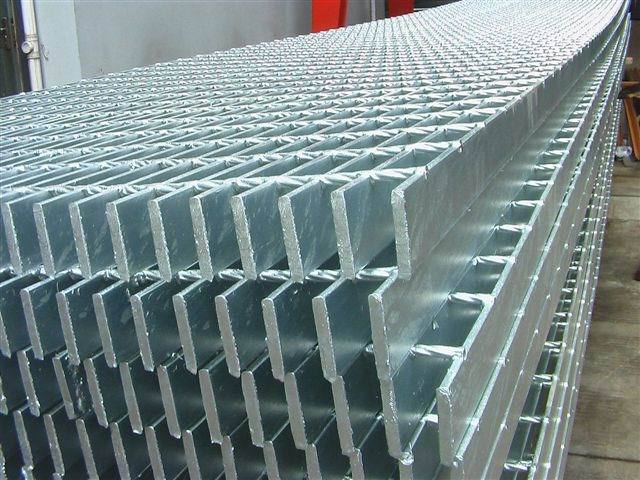

galvanized grating

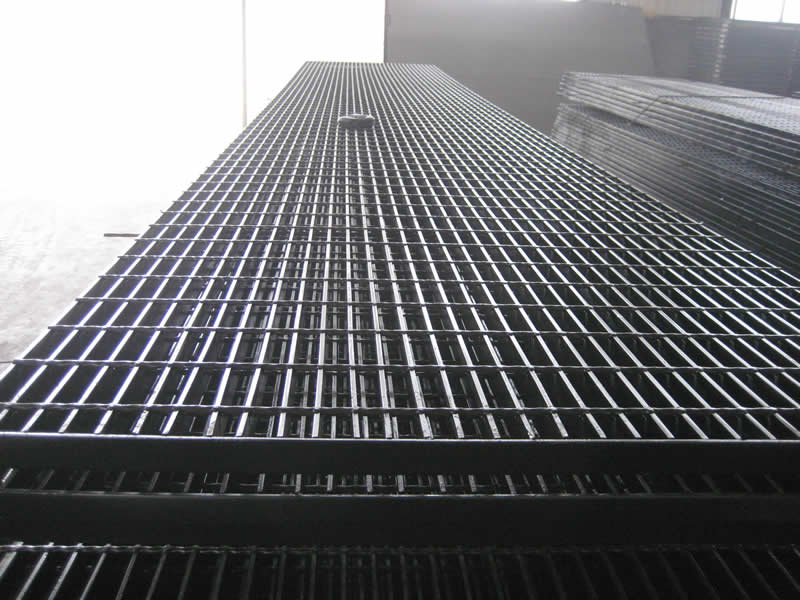

Press locked grating Black painted 1m x 6m size

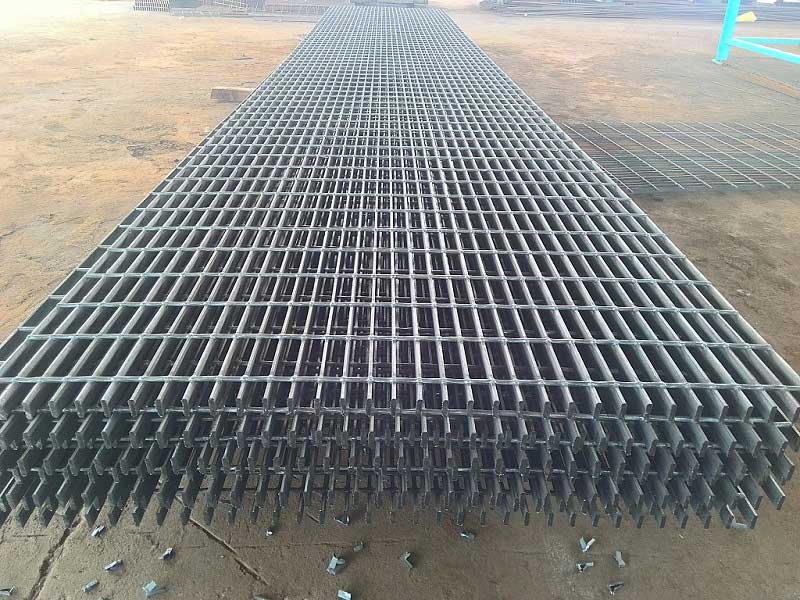

steel grating bar grating steel grating

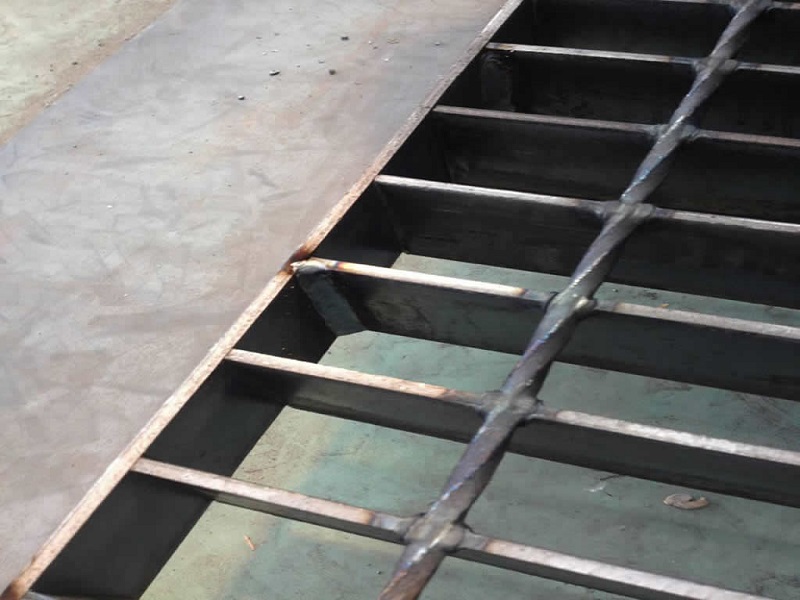

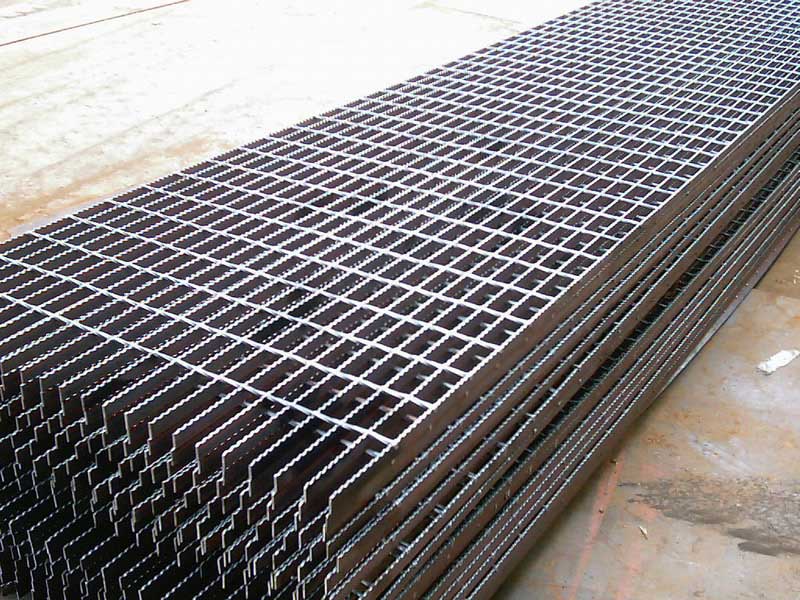

Welding details Mild steel sheets Serrated grating

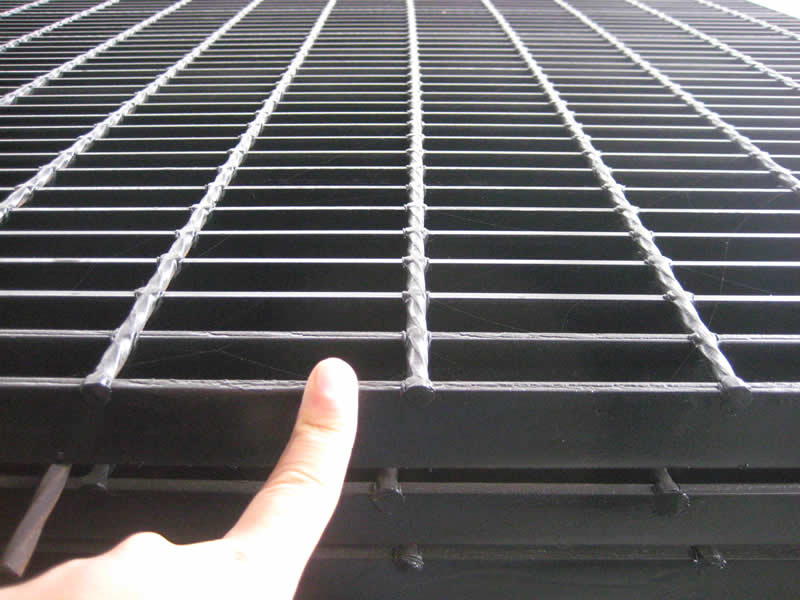

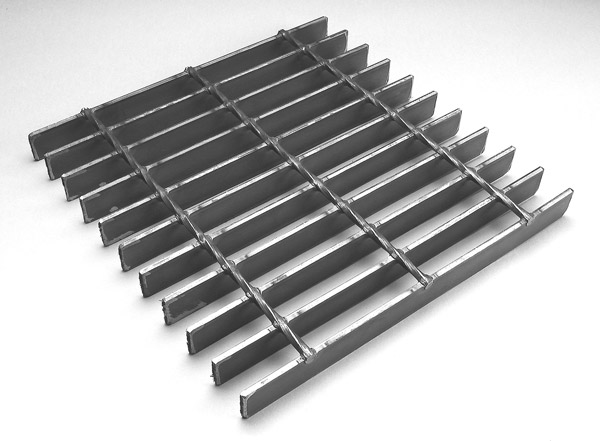

bar grating

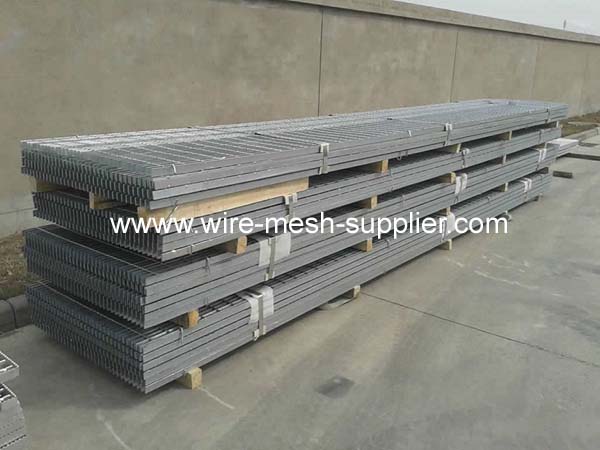

heavy type Galvanized grating Bundle packing
Material

Bearing Bar
(depth x thickness)

Bearing Bar Spacing

Crossing Bar

Crossing Bar Pitch Stock Size Finished Type



Q235
A36
16Mn

25x3mm
25x4mm
25x4.5mm
25x5mm
30x3mm
30x4mm
30x4.5mm
30x5mm
32x5mm

20mm
25mm
30mm
32.5mm
40mm

6mm
8mm
10mm
12mm

50mm
60mm
80mm
100mm
1m x 6m Mild
Painted
Galvanized
